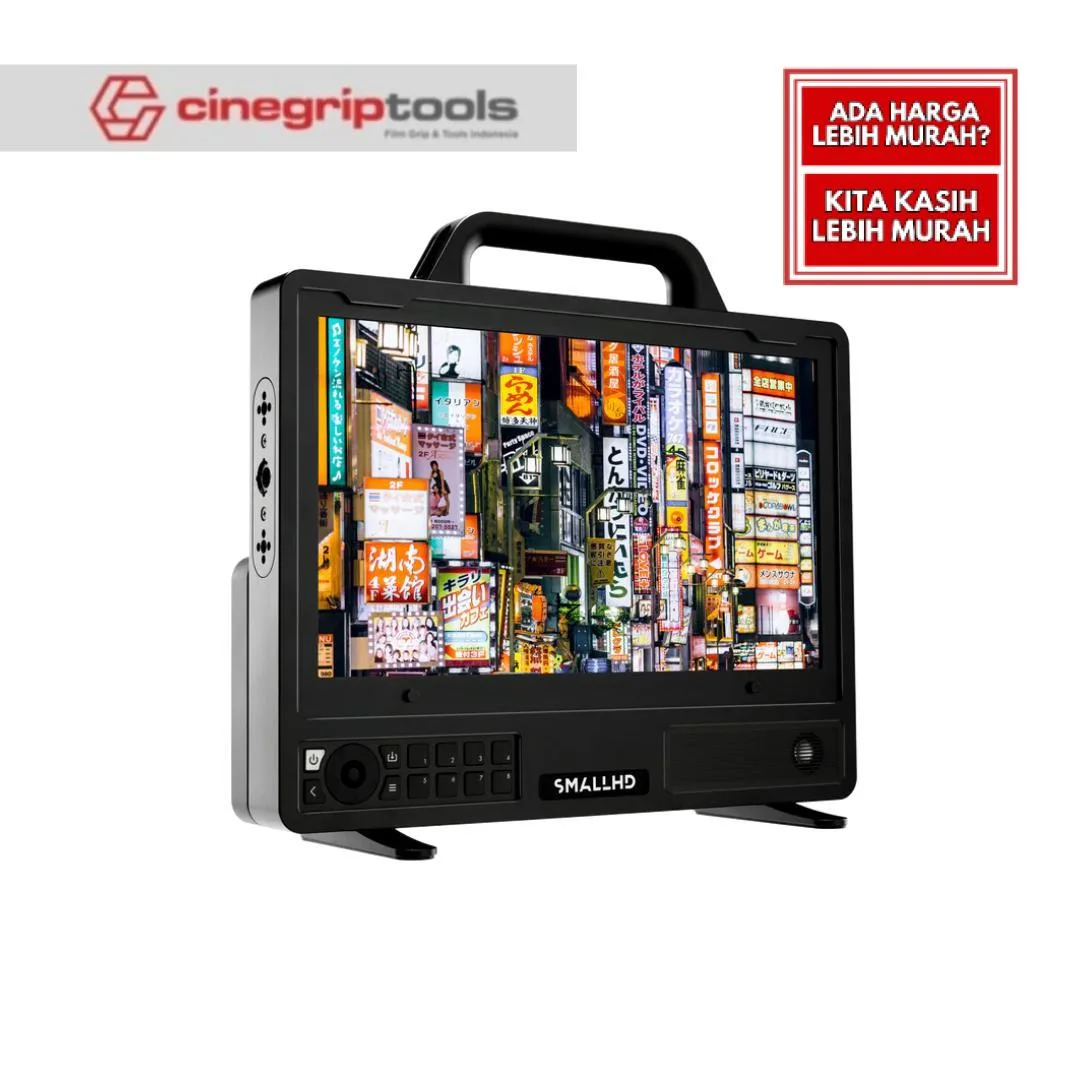

SmallHD Cine 13" 4K High-Bright Monitor

Cine 13 is an agile, brilliantly bright, and pixel-dense 4K production monitor designed for those on-set creatives who require critical focusing capability and a large display. Low-profile in design, this field companion can be rigged for almost any situation. And, weighing in at only 6.8lbs, the Cine 13 is making monitoring in 4K more portable than ever.

The Cine 13” 4K High-Bright Monitor boasts over 1500nits of brightness, ensuring an unobstructed look at your production in full sunlight without the need for a sunhood or viewing tent. The 13-inch screen has a 3840 x 2160 resolution and full 4K clarity, as well as 10-bit color depth for color-accurate images.

Cine 13 features four 12G SDI inputs and outputs as well as one HDMI 2.0 input. The Unibody Smart Chassis offers an Arca Slide on Rail for battery and accessory mounting, a lower mounting rail for ultimate flexibility, and 2x 2-pin accessory power outputs. Hot-swappable dual inputs allow you to add on Gold Mount or V-Mount battery plate attachments.

Item Weight (oz)

6.8lbs/3.09kg

Height (in)

10.1 (w/out feet and handle) 12.4 (w/ feet and handle)

Width (in)

13.2 (w/out feet and handle) 13.2 (w/ feet and handle)

Length/Depth (in)

2.3 (w/out feet and handle) 4.7 (w/ feet and handle)

Compliance

FCC, IC, CE, RoHS, SRRC, MIC

Operating Temperature

32 F - 100 F

Storage Temperature

0 F - 105 F

Screen Protection

Basic and Hardened

Mount Points

Interchangeable accessory mount plates on top and sides with multiple ¼”-20 and/or ⅜”-16 options

Construction

Anodized aluminum chassis with plastic accents

Display

Diagonal Size

13.3

Resolution

3840x2160

Max Brightness

1500nits

Contrast

1300:1

Color Depth

10-bit (8+2)

Backlight Type

Edgelit

Refresh Rate

Synchronizes with input from 48Hz to 60Hz

SD-SDI Output Types

YCC 4:2:2 @ 10-bits: 480i59.94, 576i50

Audio Output Types

1x 3.5mm 3-pin Stereo Headphone Jack

Connector Type

Component

Not Supported

Composite

Not Supported

Audio

HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

Data I/O

Connector Type

1x SD Card Slot, 1x RJ45 Ethernet, 1x RJ45 GPI

Power

Input

1x XLR 4-pin 12 - 34VDC IN (210W max, 12V-34V, 18A max)

Output

2x 2pin (12V / 2A combined), 1x USB-A (2.4A) (Front), 1x USB-A (1.5A) (Rear), 1x USB-C (5V / 1.5A) (Rear)

Consumption

36.7w (monitor only) 117.9w (w/max access. power draw)

Battery Plate Included

No

Battery Types

1x Dual-GM/VM Batt.Plate (14/26V) (sold as accessory)
